Model 8700 Ultra HP Regulator (0-31,000kPa)

Stock Code:
3200327AB
$1,918.00 ex gst

Lead time required for the assembly of some products.

Description

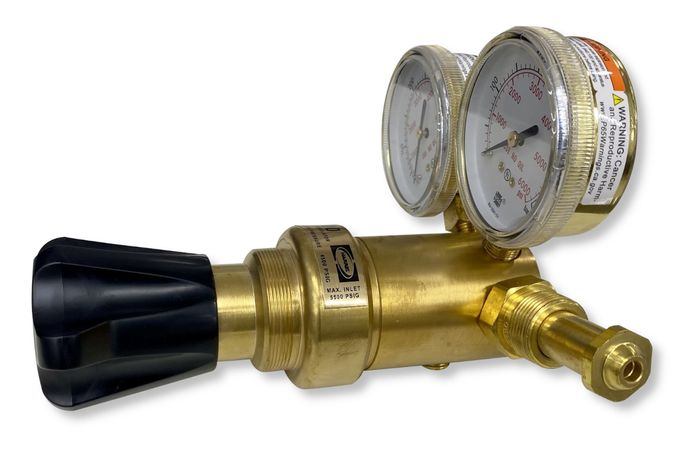

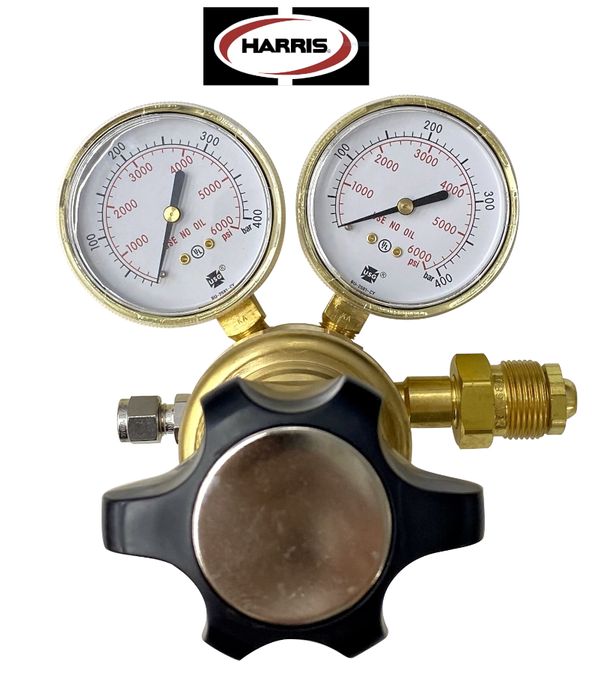

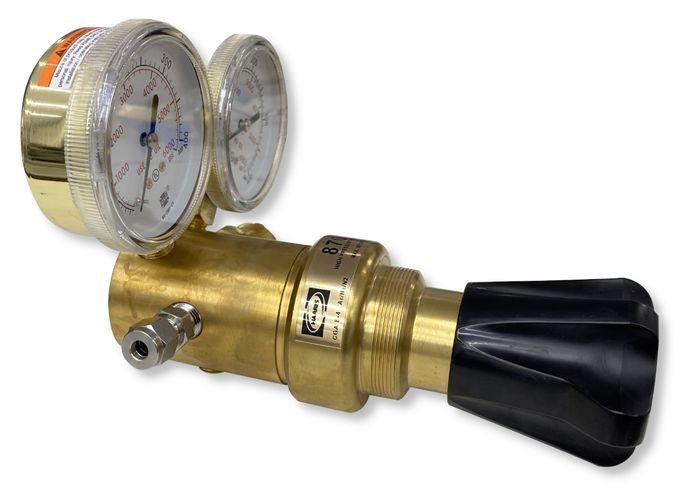

Model HP8700-4500-680 Single-Stage Pressure Regulator



Model HP8700 is a single-stage brass regulator that is designed to deliver high outlet pressures from ultra high-pressure cylinders . The Model HP8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body, bonnet and dual scale gauges, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal 10 micron filter and CTFE (Kel F®) seat.



· Maximum Inlet Pressure (PSIG): 5500

· Delivery Pressure Range (PSIG): 0-4500 (31,000kPa)

· Capacity: Ultra High-Pressure

· Inlet Connection: Self-Venting

· Gauges: 2.5" Brass Dual Scale (PSI/BAR)

· Outlet Connection: 1/4" NPT

· Gas / Gas Service: Argon, Helium, Nitrogen, Krypton, Neon, Xenon

· Type 50 & 51 Inlet Connections Included

· Adjusting Knob For Delivery Pressure

· Operates on High Pressure Cylinders Up To 6000 (PSIG)



** Production Order Required **
