Model 3590 High-Flow OXY Pipeline Reg 0-500psig
Lead time required for the assembly of some products.
Description

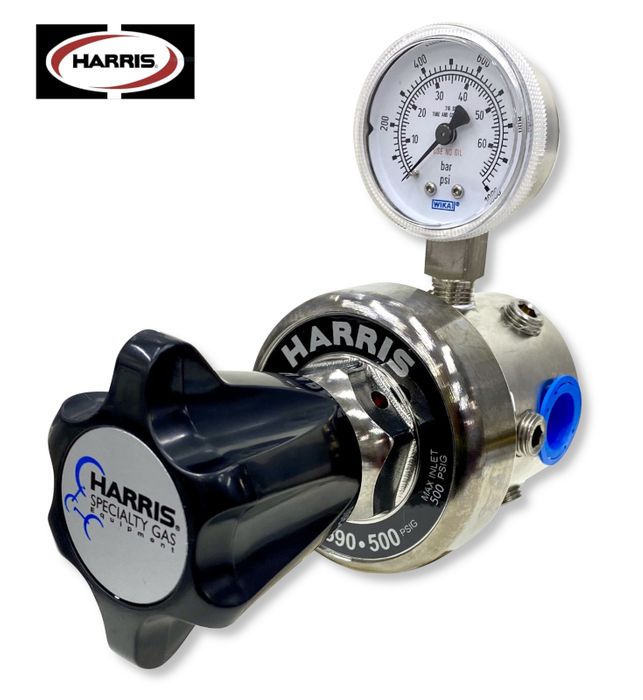

Model 3590-500 Pipeline Single-Stage Regulator (0-500PSIG, 3,500kPa)
Model 3590 is a single-stage, stainless steel diaphragm, stainless steel bar stock body regulator. This model also has 2 in. stainless steel gauge, a one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. Designed specifically for applications demanding extremely high gas flows at low incoming pressures. The Model 3590 features eight functional body ports: two 1/2 in. NPT and six 1/4 in. NPT allowing for a wide variety of inlet/outlet and gauge location configurations. Its auxiliary HP gauge port allows the Model 3590 to be used for low-pressure cylinder applications. This model is rear-panel mountable. Provides ultra-high flows for pipeline, manifold and bulk systems. For use with atmospheric or mildly corrosive gases.
• Provides ultra-high flows for pipeline, manifold and bulk systems
• Stainless steel bar stock body and bonnet for longer service life
• Stainless steel diaphragm for corrosion resistance and low leakage rate
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• 2 in. Stainless steel dual scale easy-to-read gauge (psi/bar)
• 8 ports: (2) 1/2 in. NPT, (6) 1/4 in. NPT
• 1/2 in. NPT (F) inlet and outlet connections
• Rear panel mountable
• Rear panel mountable
