3 x 3 Oxygen Manifold 1500kpa (1.2m) (1"T) (Rails)
Stock Code:
20233OXY-2-5-4
Log in for pricing
Lead time required for the assembly of some products.
Description

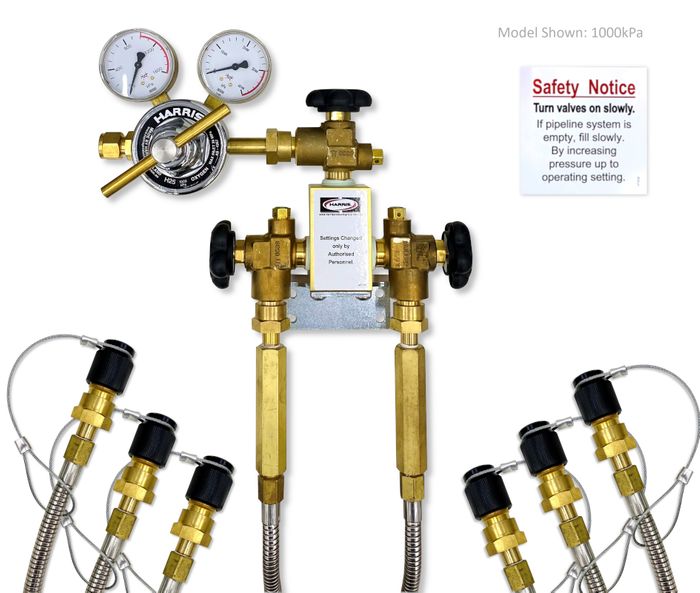

3 x 3 Manual OXYGEN Manifold for Cylinders or Packs, 0-1500kpa (Rails)
· 1 x Model H25 High-Flow Reg

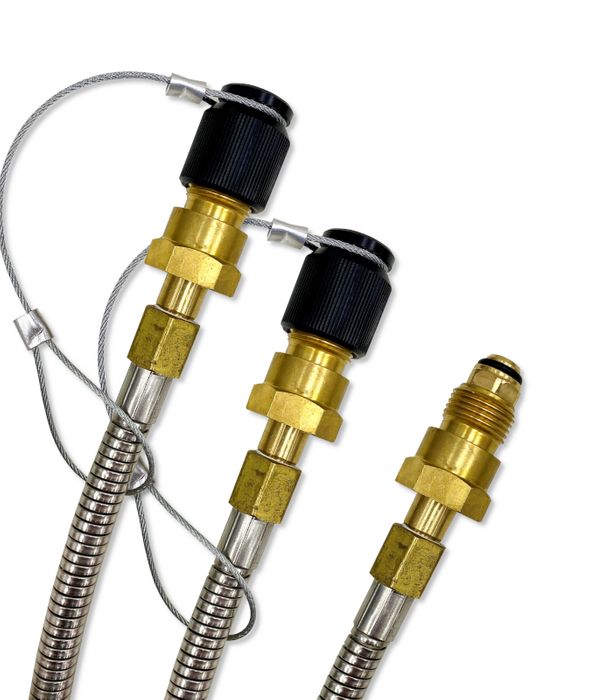

· 6 x 1.2m HP Leads (200bar) to T10, Mounted on Rails, Includes Non-Return Valves & Dust Caps
· 2 x 0.6m HP Leads (200bar) to T10, to connect rails to manifold, Includes Non-Return Valves, & Heatsink
· 3/4" Copper Copmression connections through manifold

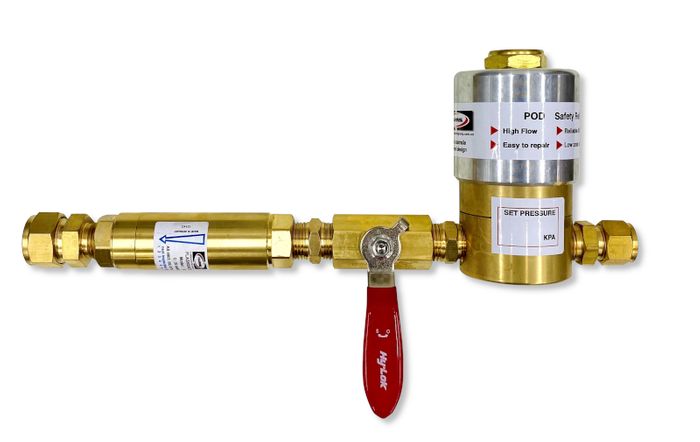

· 1 x 3/4" Isolation Valve
· 1 x High Flow Flashback Arrestor
· 1 x 4POD Saftey Relief Valve @1800kpa
· 1" Copper Compression on Outlet

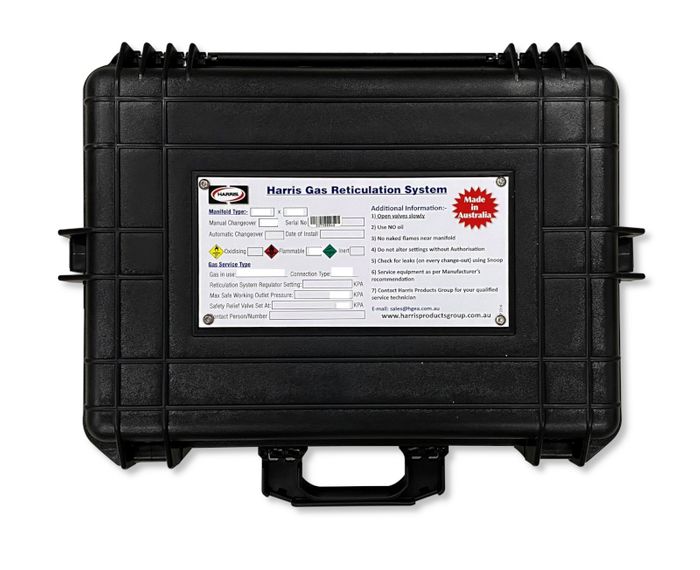

· Includes Signage
