Cutting Guide - Straight & Circular (CT Style)
Lead time required for the assembly of some products.
Description

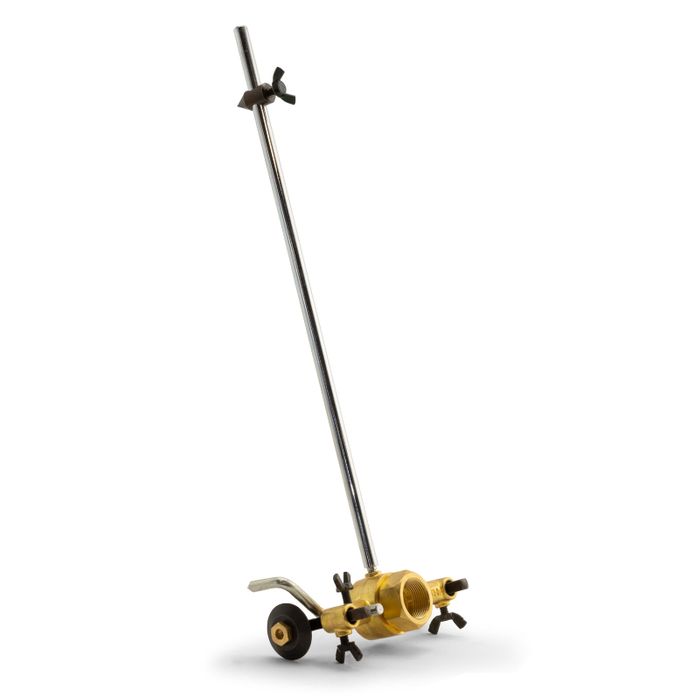

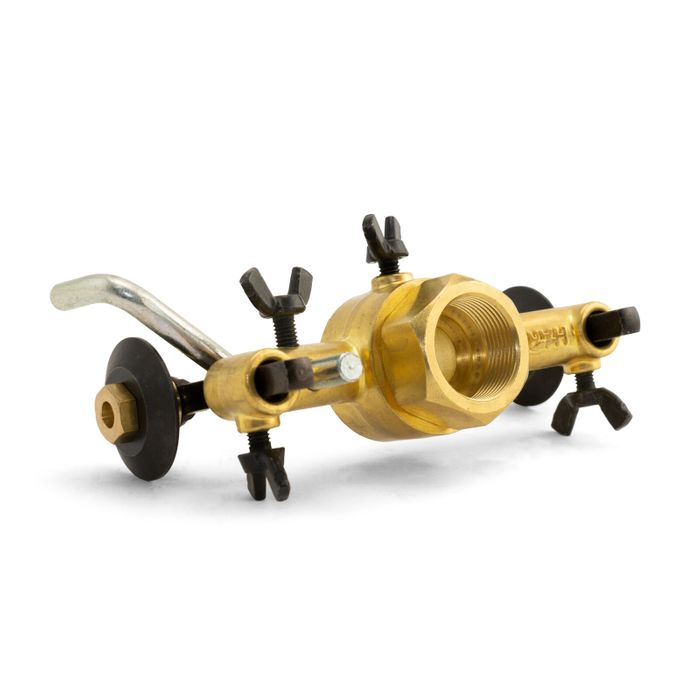

Model IR693B-HC Cutting Guide
HarrisĀ® Circle Cutting Attachment Is Designed For Cutting Circles Up To 30" Diameter And Straight-Line Cutting. It Comes With Adjustable Wheels And Provides Quality Cuts.
Features:
Harris Compatible Tip Nut (CT Style Tips)
Yields Higher Quality Cuts With Hand Torches
Features Straight-Line Cutting
Cutting Circles Up To 30" (762mm) In Diameter
Straight Line Cutting/Burning

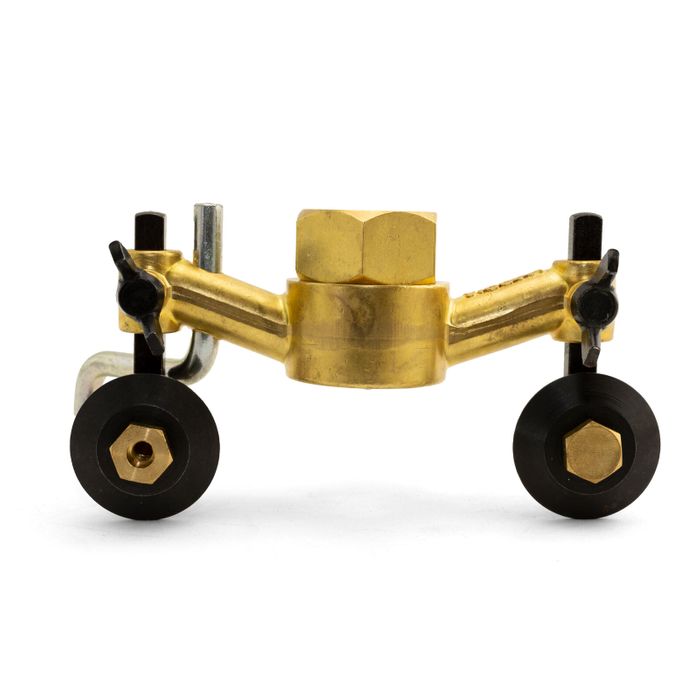

Adjustable Wheels To Match Torch Height
No Tangled Hoses Due To Swivel Nut Performance
Dimensions:
13.80mm Cutting Side Inner Diameter
28mm Mounting Nut Outer Diameter
63mm Overall Height
122mm Overall Width

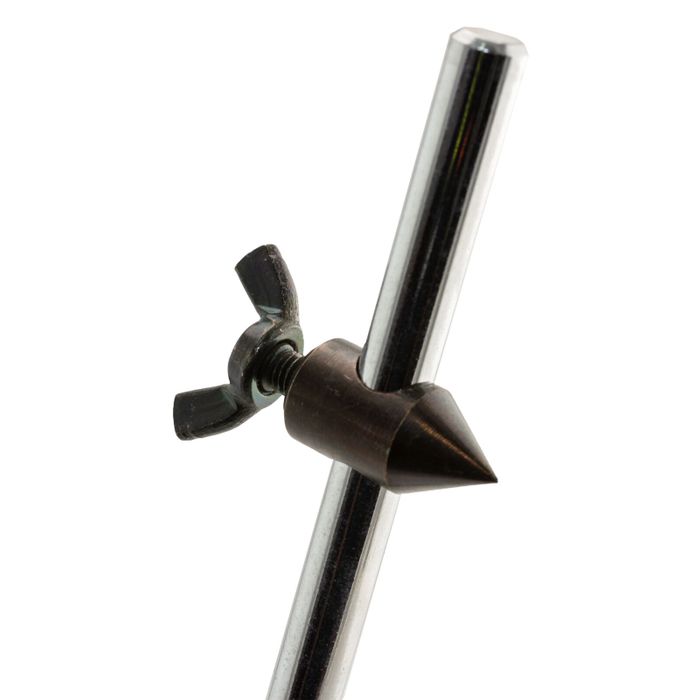

314mm Radius Bar
21mm Tip Nut Inner Diameter
30mm Wheel Width
