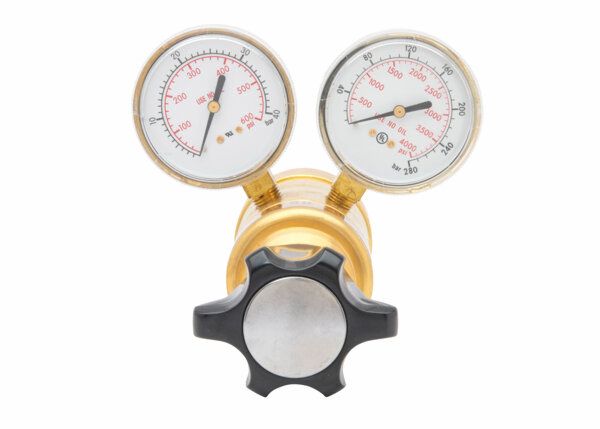

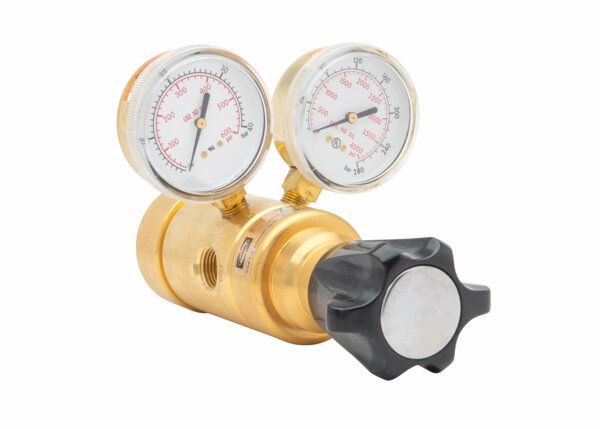

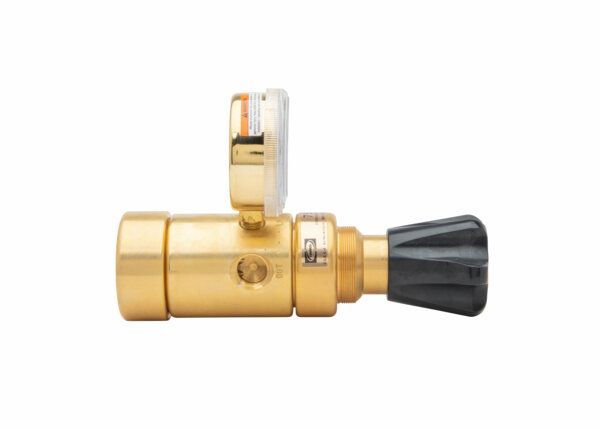

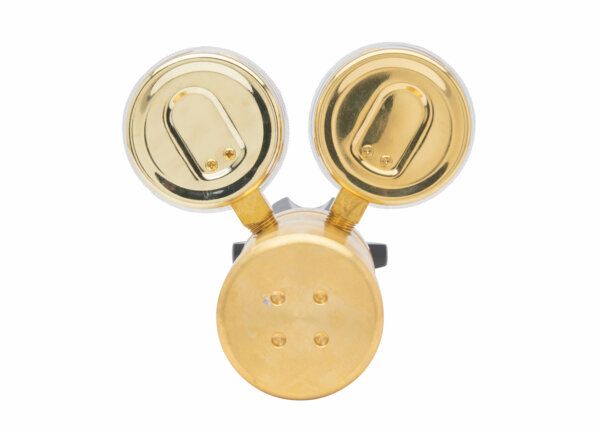

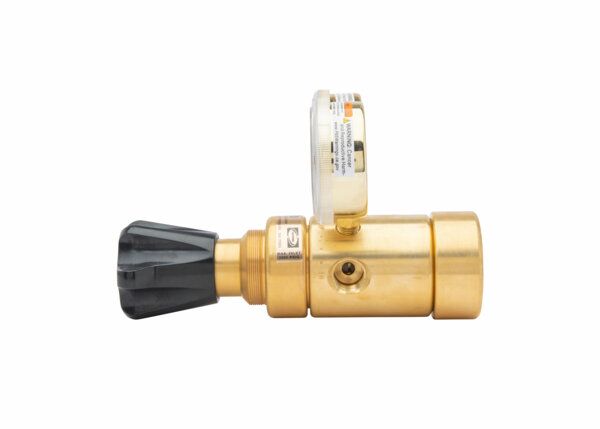

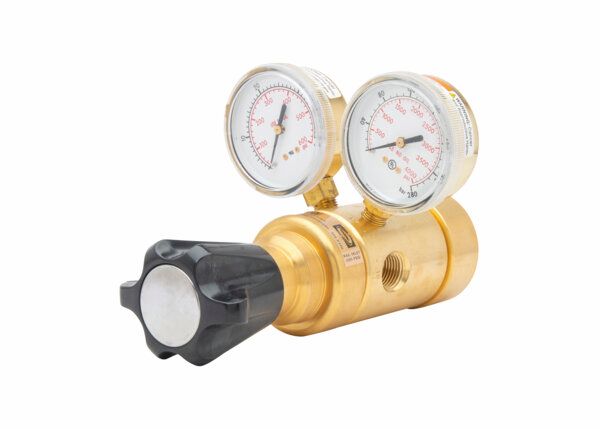

Model HP750-500 Single-Stage Regulator (0-3500KPA)

Stock Code:
3000860
$961.82 ex gst

Lead time required for the assembly of some products.

Description



Model HP750-500 Single-Stage Regulator



• Maximum Inlet Pressure (PSIG): 3000

• Maximum Outlet Pressure (KPA) 3500

• Inlet Connection: 1/2" NPT Female.

• Servo-dome load technology allows regulator to supply high-flow rates with straight line pressure regulation

• Automatically adjusts the regulator as the cylinder pressure declines providing steady outlet pressure and flow rate without user adjustment

• Ergonomic Noryl plastic knob for easy grip and precise adjustment

• Brass barstock body and bonnet for longer service life

• Neoprene diaphragm for improved pressure control

• 2.5 in. Brass dual scale (PSI/BAR) easy-to-read gauges

• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination

• Equipped with a tamper-proof, self-reseating internal safety relief valve

• Conforms to CGA E-4 standard for gas pressure regulators
