Model HP750-1000 Servo-Dome Regulator (0-7000KPA)

Stock Code:
3000869

Log in for pricing

Lead time required for the assembly of some products.

Description

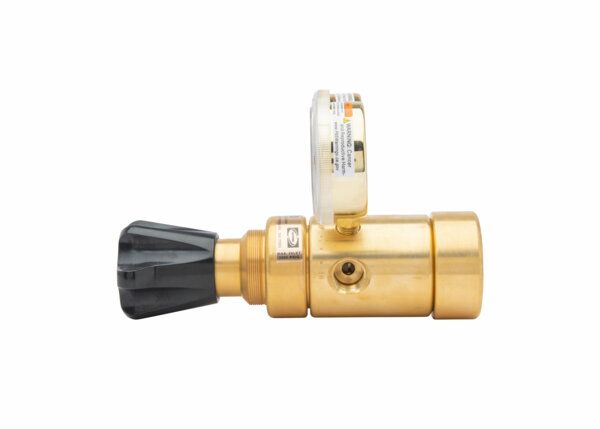

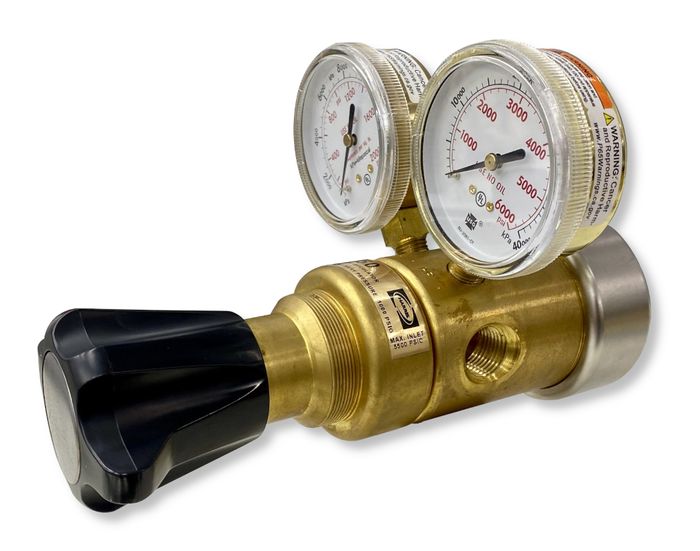

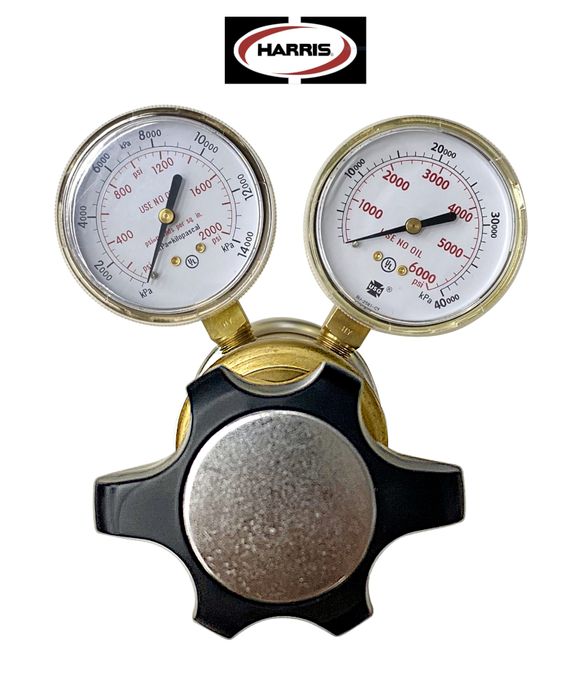

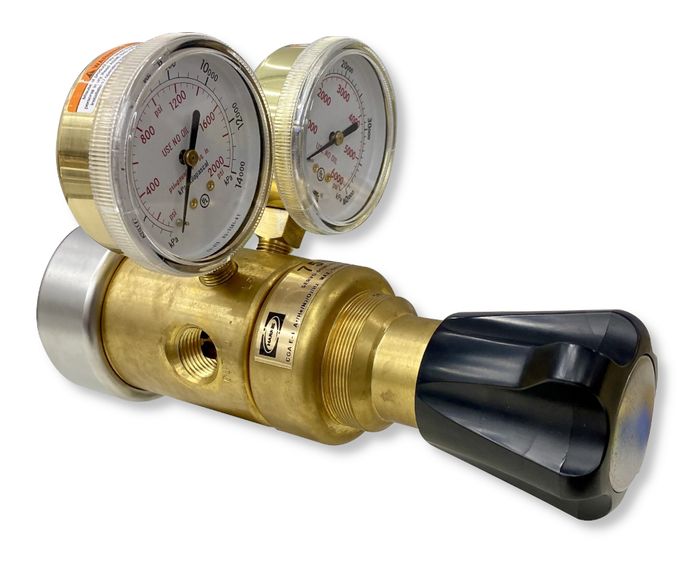

Model HP750-1000 Servo-Dome Regulator



• High-Purity

• 0-1,000psi (0-7,000kpa) Outlet

• 5,500psi Inlet

• Suitable for all gases

• Servo-dome load technology allows regulator to supply high flow rates with straight line pressure regulation

• Automatically adjusts the regulator as the cylinder pressure declines providing steady outlet pressure and flow rate without user adjustment

• Ergonomic Noryl plastic knob for easy grip and precise adjustment

• Brass barstock body and bonnet for longer service life

• Neoprene diaphragm for better pressure control

• 2.5" Brass dual scale (psi/bar) easy-to-read gauges

• One-piece encapsulated seat design with internal filter to protect the CTFE (Kel-F®) seat from particulate contamination

• Conforms to CGA E-4 standard for gas pressure regulators
